High-quality metal bars and rods in various profiles and grades for structural and machining applications.

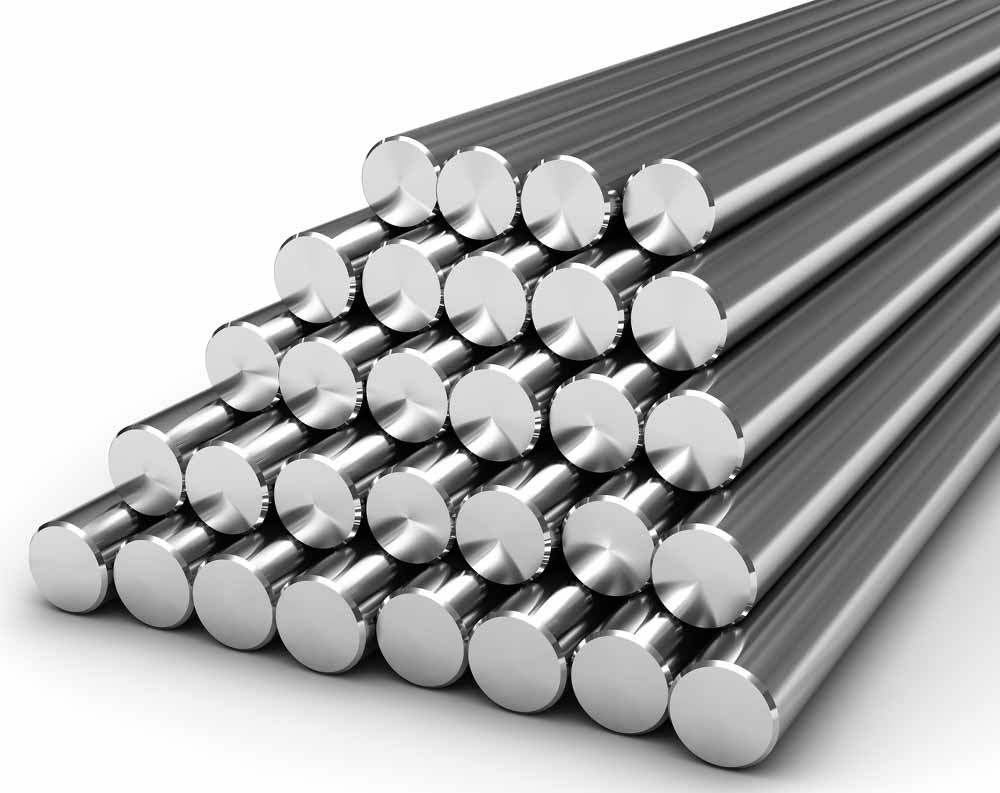

Precision-crafted round bars for diverse industrial uses.
| Diameter (mm) | Weight (kg/m) |
|---|---|
| 10 | 0.617 |
| 12 | 0.888 |
| 16 | 1.578 |
| 20 | 2.466 |
| 25 | 3.853 |

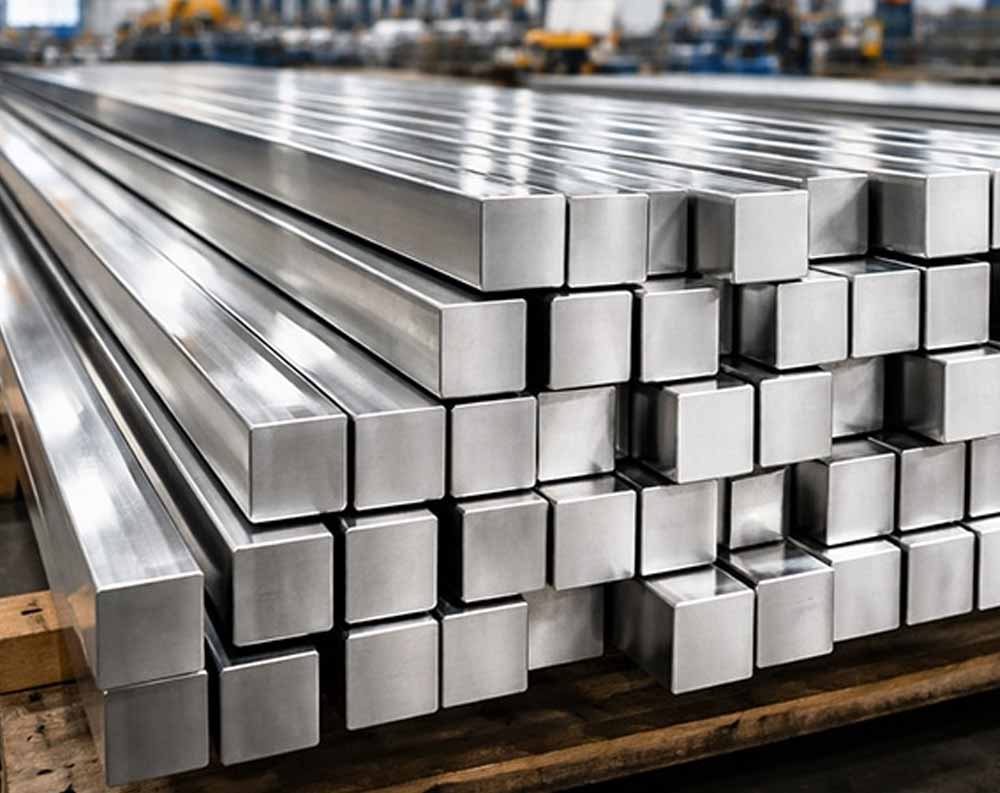

Solid square cross-section bars, commonly used in general assembly or manufacturing.
| Grade | UNS No. | Standard |
|---|---|---|
| 304/304L | S30400/S30403 | ASTM A276 |
| 316/316L | S31600/S31603 | ASTM A276 |
| Duplex 2205 | S32205 | ASTM A276 |
| Monel 400 | N04400 | ASTM B164 |

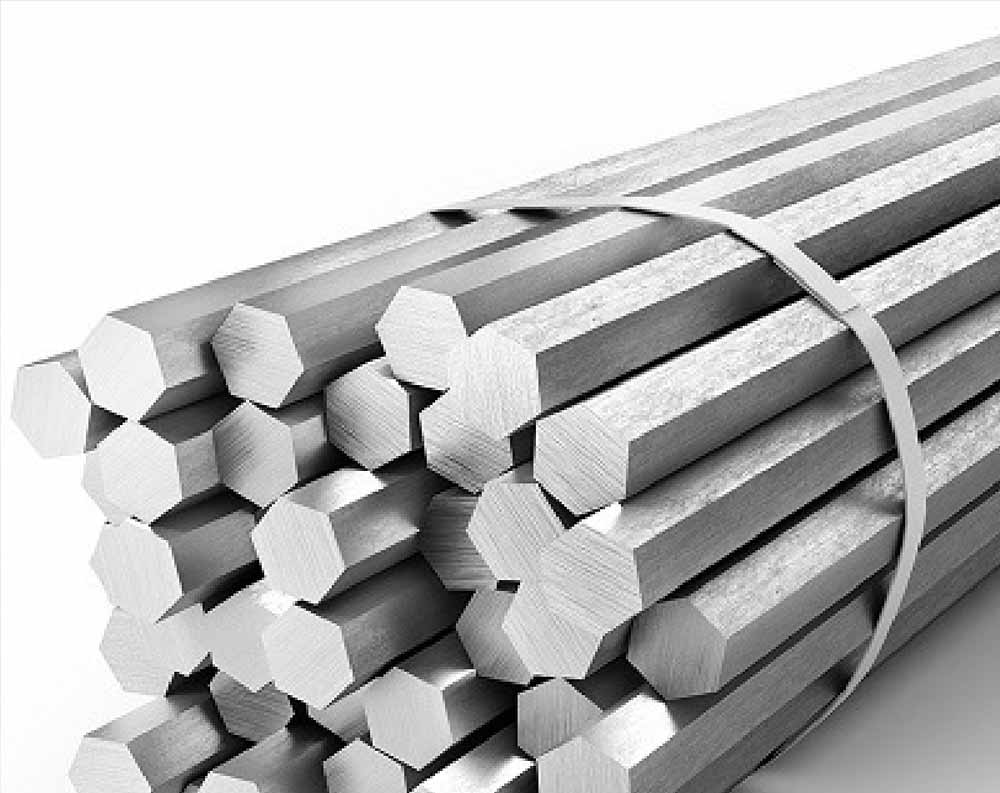

Hexagonal bars often utilized in the manufacturing of fasteners and custom machined parts.
| A/F Size (mm) | Weight (kg/m) |
|---|---|
| 10 | 0.680 |
| 12 | 0.979 |
| 16 | 1.741 |
| 20 | 2.720 |

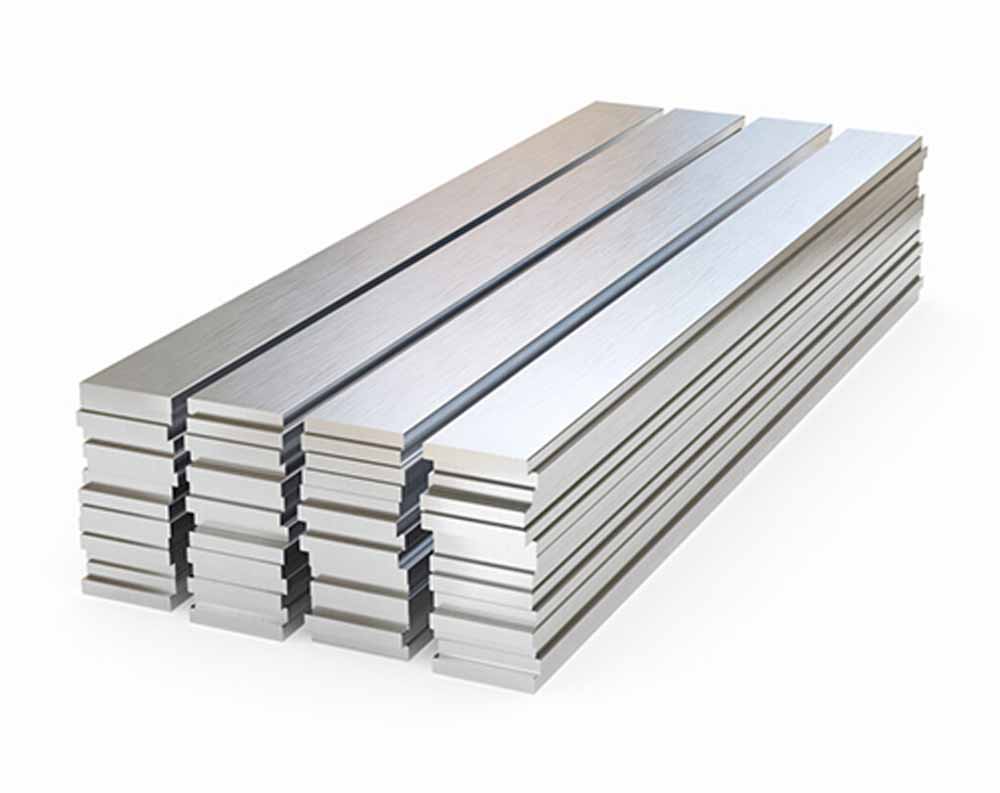

Rectangular solid bars, heavily used for structural support, frame construction, and general fabrication.
| Grade | UNS No. | Standard |
|---|---|---|
| 304/304L | S30400/S30403 | ASTM A276 |
| 316/316L | S31600/S31603 | ASTM A276 |
| Duplex 2205 | S32205 | ASTM A276 |
| Monel 400 | N04400 | ASTM B164 |
Refer to the 3D drawing and standard dimensions table below before placing your order.
Note: Standard reference diagram for Round Bar Dimensions.
| Diameter (mm) | Diameter (Inch) | Cross Section (cm�) | Weight (kg/m) - SS |
|---|---|---|---|
| 5.0 | 3/16" | 0.196 | 0.154 |
| 6.0 | 1/4" | 0.283 | 0.222 |
| 8.0 | 5/16" | 0.503 | 0.395 |
| 10.0 | 3/8" | 0.785 | 0.617 |
| 12.0 | 1/2" | 1.131 | 0.888 |
| 16.0 | 5/8" | 2.011 | 1.580 |
| 20.0 | 3/4" | 3.142 | 2.470 |
| 25.0 | 1" | 4.909 | 3.850 |
| 32.0 | 1 1/4" | 8.042 | 6.310 |
| 40.0 | 1 1/2" | 12.566 | 9.860 |
Standard chemical composition and mechanical property ranges for the round bar & rod grades supplied by Trident Metal Industries.
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.08 max (304) / 0.030 max (304L) |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Chromium (Cr) | 18.00 – 20.00 |
| Nickel (Ni) | 8.00 – 10.50 (304) / 8.00 – 12.00 (304L) |
| Nitrogen (N) | 0.10 max |
| Property | Typical Value |
|---|---|
| Tensile Strength | 515 MPa min (304) / 485 MPa min (304L) |
| Yield Strength (0.2% Proof) | 205 MPa min (304) / 170 MPa min (304L) |
| Elongation at Break | 35% min |
| Hardness | ≤ 201 HB / 92 HRB |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.08 max (316) / 0.030 max (316L) |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 0.75 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Chromium (Cr) | 16.00 – 18.00 |
| Nickel (Ni) | 10.00 – 14.00 |
| Molybdenum (Mo) | 2.00 – 3.00 |
| Nitrogen (N) | 0.10 max |
| Property | Typical Value |
|---|---|
| Tensile Strength | 515 MPa min (316) / 485 MPa min (316L) |
| Yield Strength (0.2% Proof) | 205 MPa min (316) / 170 MPa min (316L) |
| Elongation at Break | 35% min (40% for 316L) |
| Hardness | ≤ 217 HB / 95 HRB |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.030 max |
| Sulphur (S) | 0.020 max |
| Chromium (Cr) | 22.0 – 23.0 |
| Nickel (Ni) | 4.5 – 6.5 |
| Molybdenum (Mo) | 3.0 – 3.5 |
| Nitrogen (N) | 0.14 – 0.20 |
| Property | Typical Value |
|---|---|
| Tensile Strength | 620 MPa min |
| Yield Strength (0.2% Proof) | 450 MPa min |
| Elongation at Break | 25% min |
| Hardness | ≤ 293 HB / 30 HRC |
| Element | Composition (wt %) |
|---|---|
| Nickel (Ni) | 63.0 min |
| Copper (Cu) | 28.0 – 34.0 |
| Iron (Fe) | 2.5 max |
| Manganese (Mn) | 2.0 max |
| Carbon (C) | 0.3 max |
| Silicon (Si) | 0.5 max |
| Sulphur (S) | 0.024 max |
| Property | Typical Value |
|---|---|
| Tensile Strength | 483 – 620 MPa (annealed) |
| Yield Strength (0.2% Proof) | 172 – 240 MPa |
| Elongation at Break | 35% min |
| Hardness | ≤ 150 HB |
Send us the product, grade, size and quantity — we will come back with availability, pricing and a despatch date.
