Trident Metal Industries stocks and supplies Stainless Steel, Carbon Steel, Alloy Steel and Duplex / Super Duplex Sheets, Plates & Coils to certified international standards.
Hot and cold rolled sheets and plates supplied with mirror, 2B, No.1 and No.4 finishes, widely used for fabrication of tanks, cladding, ducting and process equipment.
| Thickness | Width | Length | Weight / Sheet |
|---|---|---|---|
| 1.0mm | 1250mm | 2500mm | 25 kg |
| 2.0mm | 1250mm | 2500mm | 50 kg |
| 3.0mm | 1250mm | 2500mm | 75 kg |
| 5.0mm | 1500mm | 3000mm | 180 kg |

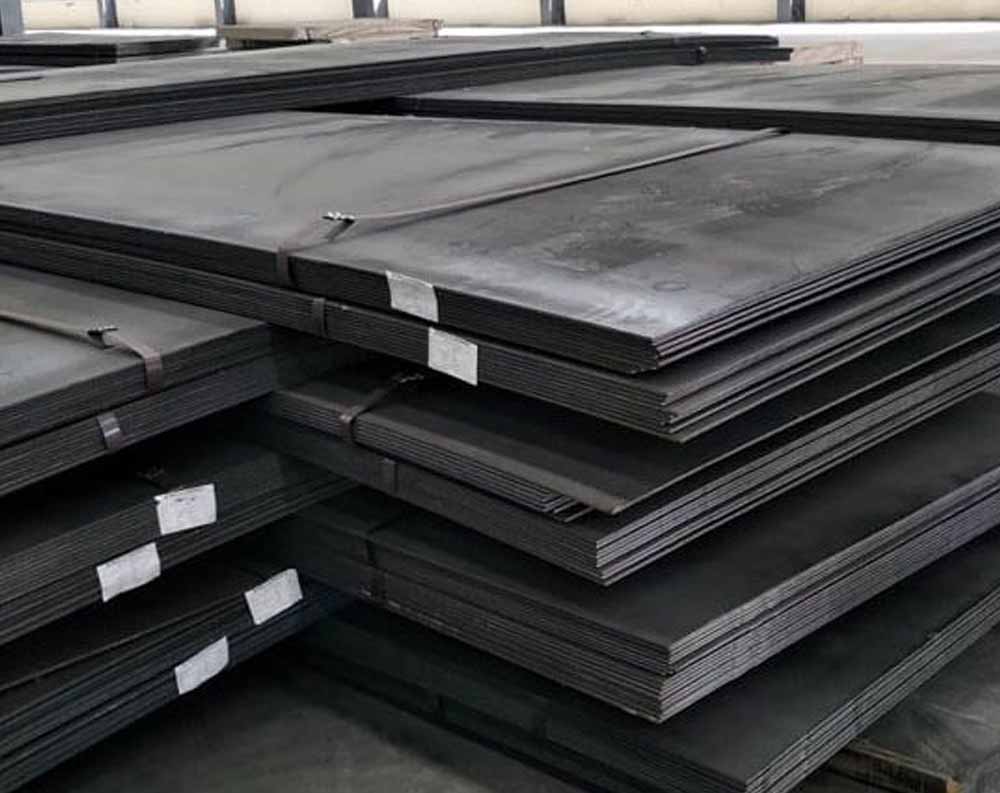

Hot rolled heavy-gauge plates supplied in mill and pickled finish, used for fabrication of pressure vessels, storage tanks and heavy structural components.
| Grade | Standard |
|---|---|
| A36 | ASTM A36 |
| A516 Gr.60 | ASTM A516 |
| A516 Gr.70 | ASTM A516 |
| IS 2062 E250 | IS 2062 |

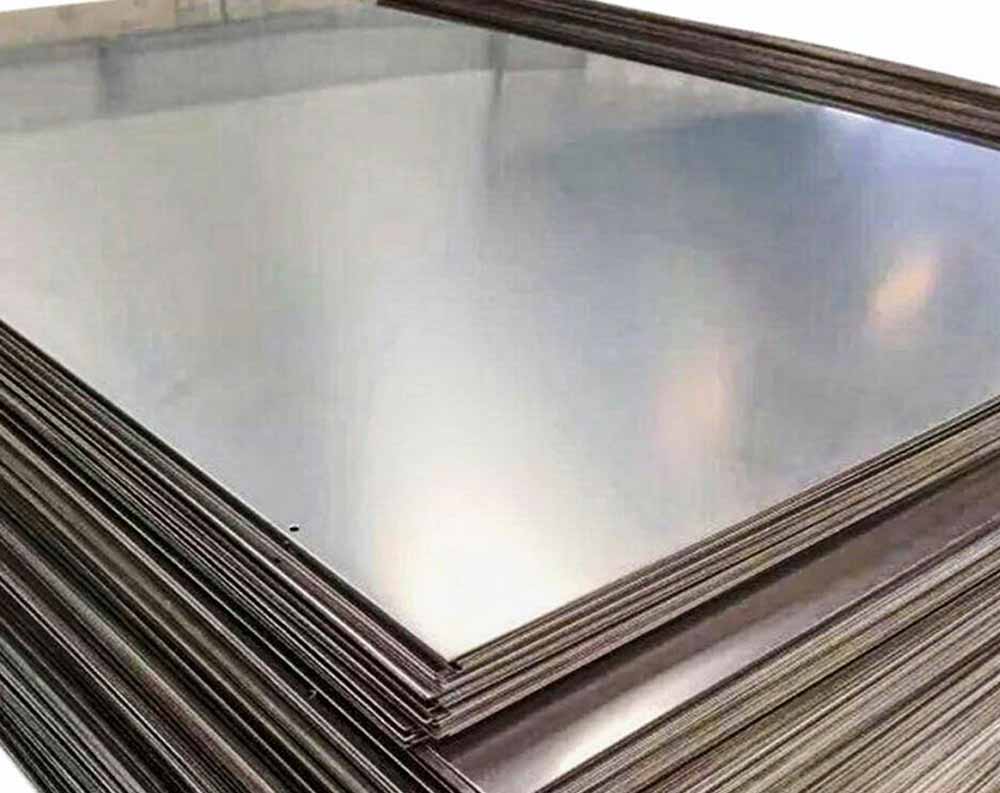

Chrome-Moly alloy steel plates engineered for high-temperature and high-pressure service in boilers, pressure vessels and refinery equipment.
| Grade | Standard |
|---|---|
| Gr. 5 | ASTM A387 |
| Gr. 11 | ASTM A387 |
| Gr. 22 | ASTM A387 |
| Gr. 91 | ASTM A387 |

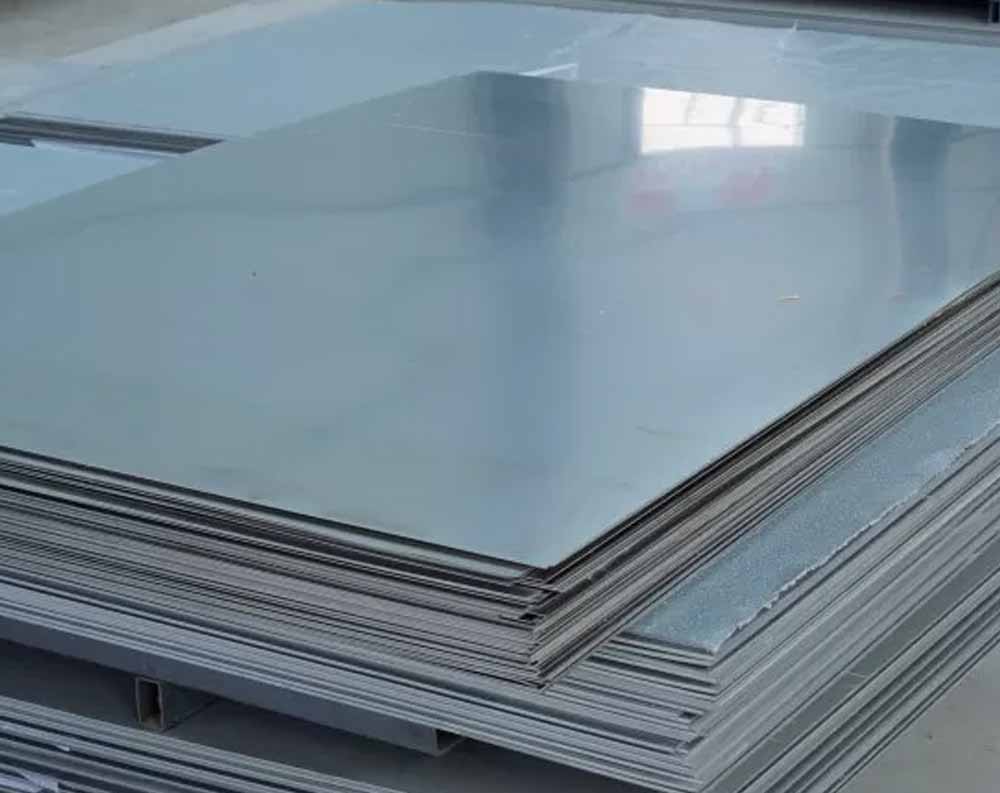

High-strength duplex and super duplex stainless steel plates offering excellent resistance to chloride stress-corrosion cracking for offshore and marine applications.
| Grade | UNS No. | ASTM Standard |
|---|---|---|
| Duplex 2205 | S32205 | ASTM A240 |
| Super Duplex 2507 | S32750 | ASTM A240 |
Refer to the 3D drawing and standard dimensions table below before placing your order.
Note: Standard reference diagram for Sheet and Plate dimensions.
| Thickness (mm) | Standard Widths (mm) | Standard Lengths (mm) | Weight (kg/m�) - SS |
|---|---|---|---|
| 1.0 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 8.0 |
| 1.5 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 12.0 |
| 2.0 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 16.0 |
| 3.0 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 24.0 |
| 4.0 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 32.0 |
| 5.0 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 40.0 |
| 6.0 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 48.0 |
| 8.0 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 64.0 |
| 10.0 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 80.0 |
| 12.0 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | 96.0 |
Standard chemical composition and mechanical property ranges for the stainless, duplex and carbon steel sheet & plate grades we stock.
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.08 max (304) / 0.030 max (304L) |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Chromium (Cr) | 18.00 – 20.00 |
| Nickel (Ni) | 8.00 – 10.50 (304) / 8.00 – 12.00 (304L) |
| Nitrogen (N) | 0.10 max |
| Property | Typical Value |
|---|---|
| Tensile Strength | 515 MPa min (304) / 485 MPa min (304L) |
| Yield Strength (0.2% Proof) | 205 MPa min (304) / 170 MPa min (304L) |
| Elongation at Break | 35% min |
| Hardness | ≤ 201 HB / 92 HRB |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.08 max (316) / 0.030 max (316L) |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 0.75 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Chromium (Cr) | 16.00 – 18.00 |
| Nickel (Ni) | 10.00 – 14.00 |
| Molybdenum (Mo) | 2.00 – 3.00 |
| Nitrogen (N) | 0.10 max |
| Property | Typical Value |
|---|---|
| Tensile Strength | 515 MPa min (316) / 485 MPa min (316L) |
| Yield Strength (0.2% Proof) | 205 MPa min (316) / 170 MPa min (316L) |
| Elongation at Break | 35% min (40% for 316L) |
| Hardness | ≤ 217 HB / 95 HRB |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.030 max |
| Sulphur (S) | 0.020 max |
| Chromium (Cr) | 22.0 – 23.0 |
| Nickel (Ni) | 4.5 – 6.5 |
| Molybdenum (Mo) | 3.0 – 3.5 |
| Nitrogen (N) | 0.14 – 0.20 |
| Property | Typical Value |
|---|---|
| Tensile Strength | 620 MPa min |
| Yield Strength (0.2% Proof) | 450 MPa min |
| Elongation at Break | 25% min |
| Hardness | ≤ 293 HB / 30 HRC |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 1.20 max |
| Silicon (Si) | 0.80 max |
| Phosphorus (P) | 0.035 max |
| Sulphur (S) | 0.020 max |
| Chromium (Cr) | 24.0 – 26.0 |
| Nickel (Ni) | 6.0 – 8.0 |
| Molybdenum (Mo) | 3.0 – 5.0 |
| Nitrogen (N) | 0.24 – 0.32 |
| Property | Typical Value |
|---|---|
| Tensile Strength | 795 MPa min |
| Yield Strength (0.2% Proof) | 550 MPa min |
| Elongation at Break | 15% min |
| Hardness | ≤ 310 HB / 32 HRC |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.26 max |
| Manganese (Mn) | 0.60 – 0.90 |
| Silicon (Si) | 0.40 max |
| Phosphorus (P) | 0.04 max |
| Sulphur (S) | 0.05 max |
| Copper (Cu) | 0.20 min (when copper steel specified) |
| Property | Typical Value |
|---|---|
| Tensile Strength | 400 – 550 MPa |
| Yield Strength | 250 MPa min |
| Elongation at Break | 20% min (in 200 mm) |
| Hardness | ≈ 119 – 159 HB |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.28 max |
| Manganese (Mn) | 0.85 – 1.20 |
| Silicon (Si) | 0.15 – 0.40 |
| Phosphorus (P) | 0.035 max |
| Sulphur (S) | 0.035 max |
| Property | Typical Value |
|---|---|
| Tensile Strength | 485 – 620 MPa |
| Yield Strength | 260 MPa min |
| Elongation at Break | 17% min (in 200 mm) |
| Hardness | ≈ 137 – 179 HB |
Send us the product, grade, size and quantity — we will come back with availability, pricing and a despatch date.
